ICON Stage 6 System for 2010+ FJ Cruiser/4Runner (Tubular and Non-Tubular)

  • Sale
  • $5,999.60


ICON Stage 6 System for 2010+ FJ Cruiser/4Runner
(see details below of both tubular and non-tubular)

NON-TUBULAR
Overview:

The Stage 6 suspension system for the 2010 +  Toyota 4Runner is the best over all handling bolt on suspension system you can install, and incorporates all of the top level components we make for the 4Runner. This system can handlle any terrain you throw at it and gives you unsurpassed ride quality on the street with incredible offroad performance. Rear ICON Billet Upper Links and Adjustable Pan Rod Bar were added to make the Stage 6 system, which add strength and allow you to fine tune rear end positioning. The Remote Reservoir 2.5" coil over shocks and Billet Upper Control Arms give the 4Runner's front suspension longevity and great heat dissipation, our rear springs in this system give the 4Runner 2" of lift, and the rear billet lower links help manage the rear axle to cycle smoothly with out bind. ICON's V.S. Series 2.5" Diameter Rear Reservoir Shocks are critical component for people that use their vehicles in various on and offroad situations. These shocks are tuned specifically to give your 4Runner a balanced and smooth ride quality, along with extended length shock cooling from the increased oil volume and remote reservoir. 57810 4Runner 2.5" rear shocks have a built in bump zone to increase your compression valving in the final two inches of compression travel, which prevents the harsh bottom out sensation, and gives the vehicle a much more controlled ride quality. Combining these components together gives you the best possible off the shelf suspension system available for your Toyota 4Runner.

Tech Info:

• We recommend the use of our #56100 shock shin guards or a protective boot to reduce the chance of shock shaft damage. These shocks are located in a vulnerable position that allows debris to easily come in direct contact with the shock shaft.

• Works with KDSS equipped Vehicles

Wheel & Tire Fitment Info:

OEM Wheels & Tires:    Yes

Aftermarket Wheels:    16" - 18" w/ up to 5" Backspace

                                 20" + w/ up to 5.250 Backspace (pending wheel make)

Aftermarket Tires:       33" Tall Tires

                                 Larger Tires May Fit but Fender Trimming and Modifications will be Required.

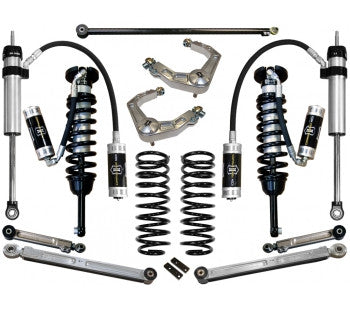

System Components:

58747    (QTY - 1)  - Extended Travel Remote Reservoir Adjustable Coil-over Shock Kit

58551    (QTY - 1)  - Billet Uniball Upper Control Arm Kit

52700    (QTY - 1)  - 2" Lift Rear Coil-spring Kit

57810    (QTY - 2)  - ICON V.S. 2.5 Series Remote Reservoir Rear Shocks

54000    (QTY - 1)  - Billet Aluminum Lower Rear Trailing Arm Kit

54100    (QTY - 1)  - Billet Aluminum Upper Rear Trailing Arm Kit

54200    (QTY - 1)  - Rear Adjustable Pan-Rod Bar Kit

Options:

56100   (QTY - 1)  - ICON Rear shock shin guards

52800   (QTY - 1)  - ICON Overland Series dual rate 3" lift rear coil springs

56104    (QTY - 1)  - Rear hydraulic bumpstop kit

198000  (QTY - 1)  - ICON 2 pin spanner wrench



ICON Stage 6 System for 2010+ FJ Cruiser/4Runner

TUBULAR
Overview:

The Stage 6 suspension system w/ tubular UCA for the 2010 + Toyota 4Runner is the best over all handling bolt on suspension system you can install, and incorporates all of the top level components we make for the 4Runner. This system can handlle any terrain you throw at it and gives you unsurpassed ride quality on the street with incredible offroad performance. Rear ICON Billet Upper Links and Adjustable Pan Rod Bar were added to make the Stage 6 system, which add strength and allow you to fine tune rear end positioning. The Remote Reservoir 2.5" coil over shocks and Billet Upper Control Arms give the 4Runners's front suspension longevity and great heat dissipation, our rear springs in this system give the 4Runner 2" of lift, and the rear billet lower links help manage the rear axle to cycle smoothly with out bind. ICON's V.S. Series 2.5" Diameter Rear Resevoir Shocks are critical component for people that use their vehicles in various on and offroad situations. These shocks are tuned specifically to give your 4Runner a balanced and smooth ride quality, along with extended length shock cooling from the increased oil volume and remote reservoir. 57810 FJ 2.5" rear shocks have a built in bump zone to increase your compression valving in the final two inches of compression travel, which prevents the harsh bottom out sensation, and gives the vehicle a much more controlled ride quality. Combining these components together gives you the best possible off the shelf suspension system available for your 4Runner.

Tech Info:

• We recommend the use of our #56100 shock shin guards or a protective boot to reduce the chance of shock shaft damage. These shocks are located in a vulnerable position that allows debris to easily come in direct contact with the shock shaft.

• Works with KDSS equipped Vehicles

Wheel & Tire Fitment Info:

OEM Wheels & Tires:    Yes

Aftermarket Wheels:    16" - 18" w/ up to 5" Backspace

                                 20" + w/ up to 5.250 Backspace (pending wheel make)

Aftermarket Tires:       33" Tall Tires

                                 Larger Tires May Fit but Fender Trimming and Modifications will be Required.

System Components:

58747    (QTY - 1)  - Extended Travel Remote Reservoir Adjustable Coil-over Shock Kit

58451    (QTY - 1)  - Tubular Uniball Upper Control Arm Kit

52700    (QTY - 1)  - 2" Lift Rear Coil-spring Kit

57810    (QTY - 2)  - ICON V.S. 2.5 Series Remote Reservoir Rear Shocks

54000    (QTY - 1)  - Billet Aluminum Lower Rear Trailing Arm Kit

54100    (QTY - 1)  - Billet Aluminum Upper Rear Trailing Arm Kit

54200    (QTY - 1)  - Rear Adjustable Pan-Rod Bar Kit

Options:

56100   (QTY - 1)  - ICON Rear shock shin guards

52800    (QTY - 1)  - ICON Overland Series dual rate 3" lift rear coil springs

56104    (QTY - 1)  - Rear hydraulic bumpstop kit

198000  (QTY - 1)  - ICON 2 pin spanner wrench

Does not ship to Canada!
